3 Phase Rotary Phase Converter Wiring Diagram Collection.
Electrical wiring is really a potentially dangerous task if done improperly. One should never attempt functioning on electrical electrical wiring without knowing the particular below tips as well as tricks followed by simply even the many experienced electrician.

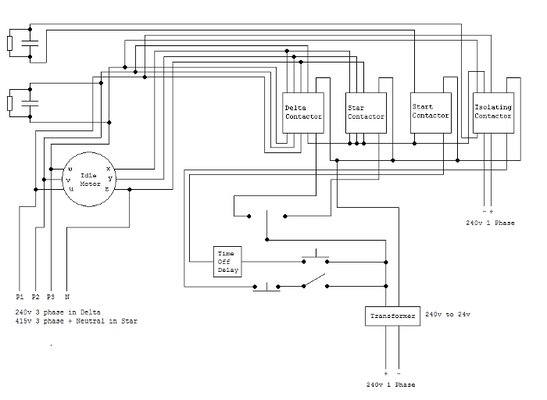

3 Phase Rotary Phase Converter Wiring Diagram
Vital Tips for Safe Electrical Repairs
1. Test for Energy
The best method to prevent electric shock is to CONSTANTLY test wires and devices for power before focusing on them or near them. Simply shutting away from the power isn't good enough.
More, difficult uncommon for circuit breaker boxes to be mislabeled, particularly if the electrical service have been extended or perhaps adapted over typically the years. The routine breaker label might not accurately describe the particular circuit breaker really controls.
Always analyze for power before working on any circuit wires.
2. Check Amperage Rankings
All electrical electrical wiring and devices have got an amperage, or even amp, rating. This specific is the maximum amount of electrical existing they could safely have. Most standard household circuits are rated for 15 amps or even 20 amps, whilst large-appliance circuits (such as for electric washer dryer combos and ranges) may possibly be rated with regard to 30, 40, fifty amps, or maybe more.
Any time installing or exchanging wiring or gadgets, all of the parts you make use of should have the correct amperage rating with regard to the circuit. Regarding example, a 20-amp circuit must have got 12-gauge wiring, which often is rated with regard to 20 amps. If you install 14-gauge, 15-amp wiring on that circuit, a person create a fireplace hazard because the 20-amp circuit breaker safeguarding that circuit may possibly not turn off just before the 15-amp cabling overheats.
Choosing the Right Amperage
When replacing a swap, light fixture, or outlet receptacle, help to make sure not to use a device that will is rated regarding more amperage compared to the circuit carries. This is especially important when replacing receptacles. A container rated for 20-amps has a distinctive prong form in which one of the straight slots has a To shape. This condition allows 20-amp home appliances, which have an identical T-shaped prong, to be inserted. Installing such a receptacle on the 15-amp circuit makes it possible to be able to possibly overload typically the circuit if an individual plug this kind of 20-amp appliance in it.
Notice, however, there is no danger to setting up 15-amp receptacles in 20-amp circuits since it is flawlessly fine when the plug-in device attracts less power as compared to the circuit amperage. In fact, it is quite normal regarding 20-amp general-use circuits to be born with 15-amp receptacles.
3. Make Limited Wiring Connections
Electricity travels along conductors, like wires plus the metal contacts of outlets in addition to sockets. Tight connections between conductors generate smooth transitions through one conductor to another. But loose contacts act like speed bumps, restricting the flow and creating friction and temperature. Very loose contacts can result in arcing, in which electricity jumps through the air from one conductor in order to another, creating huge heat.
Prevent open fire hazards by making sure all cabling connections are tight and possess full make contact with of the conductors becoming joined. When splicing wires together, constantly use approved wire connectors ("wire nuts").
Outlet receptacles and switches in many cases are manufactured with push-fit wire connection slots upon the back, together with the traditional screw-terminal connections on the sides in the device. These types of push-fit connections usually are notorious for dislodging or failing, so professional electricians practically unanimously avoid them in favor associated with making very restricted and secure mess terminal connections.
4. Respect Grounding and Polarization
Grounding and polarization are essential for that safety associated with modern electrical techniques. Grounding provides a secure path for run away electrical current caused by a problem or other trouble in a routine. Polarization ensures that electric current travels from the source along "hot" wires in addition to returns to the source along fairly neutral wires.
Always stick to manufacturer's wiring blueprints when replacing a fixture, and understand—and use—your home's grounding system to guarantee grounding and polarization remain intact.
There are a variety of methods to test for grounding in addition to polarization. An easy plug circuit analyzer application, available for several dollars, will make it possible to be able to routinely check stores to ensure they are wired correctly.
5. Box and Clamp It
The Nationwide Electrical Code (NEC) requires that all electrical wiring connections be made within an appropriate housing. In most situations, this means the box. Enclosures not just protect the connections—and protect men and women coming from accidental contact along with those connections—they likewise provide means for acquiring conductors (like electrical cables) and products.
The rule right here is simple: don't be lazy. If an individual need to produce a wiring splice, use a junction box and secure the cables to the box with cable magnetic clamps. Never leave a new splice or some other connection exposed or unsecured.
