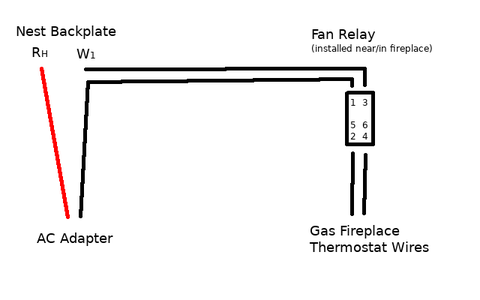

Gas Fireplace Wiring Diagram

Gas Fireplace Wiring Diagram from cdn.instructables.com
Gas Fireplace Wiring Diagram from cdn.instructables.com

Important Tips for Secure Electrical Repairs

1. Test for Energy

The best method to prevent electric shock is always to CONSTANTLY test wires plus devices for energy before taking care of these people or near them. Simply shutting off the power isn't very good enough.

More, difficult uncommon with regard to circuit breaker bins to be mislabeled, especially when the electrical service continues to be extended or adapted over the particular years. The signal breaker label might not accurately describe what the circuit breaker actually controls.

Always check for power before working on any circuit wires.

2. Check Amperage Ratings

All electrical electrical wiring and devices possess an amperage, or perhaps amp, rating. This particular is the highest level of electrical present they can safely carry. Most standard household brake lines are rated regarding 15 amps or perhaps 20 amps, whilst large-appliance circuits (such in terms of electric washer dryer combos and ranges) may be rated with regard to 30, 40, 50 amps, if not more.

Whenever installing or changing wiring or gadgets, all of the particular parts you utilize need to have the correct amperage rating regarding the circuit. Regarding example, a 20-amp circuit must possess 12-gauge wiring, which usually is rated for 20 amps. If you install 14-gauge, 15-amp wiring upon that circuit, an individual create a fireplace hazard because the 20-amp circuit breaker safeguarding that circuit may possibly not turn off prior to the 15-amp cabling overheats.

Choosing the particular Right Amperage

Whenever replacing a switch, light fixture, or even outlet receptacle, help to make sure not to use a device of which is rated regarding more amperage than the circuit carries. This is especially important when changing receptacles. A container rated for 20-amps has a distinctive prong shape in which among the vertical slots has a Capital t shape. This condition allows 20-amp appliances, which have a matching T-shaped prong, to get inserted. Installing such a receptacle on a new 15-amp circuit can make it possible in order to possibly overload typically the circuit if a person plug such a 20-amp appliance into it.

Note, however, there is no danger to installing 15-amp receptacles inside 20-amp circuits since it is perfectly fine when a plug-in device pulls less power than the circuit amperage. In fact, it is quite normal with regard to 20-amp general-use circuits to be born with 15-amp containers.

3. Make Tight Wiring Connections

Electrical power travels along conductors, like wires in addition to the metal contacts of outlets in addition to sockets. Tight connections between conductors produce smooth transitions from one conductor to a new. But loose connections act like speed bumps, restricting the particular flow and creating friction and temperature. Very loose contacts can cause arcing, by which electricity gets from the air through one conductor to be able to another, creating huge heat.

Prevent open fire hazards by generating sure all electrical wiring connections are restricted and have full make contact with in the conductors being joined. When splicing wires together, always use approved cable connectors ("wire nuts").

Outlet receptacles plus switches are often made with push-fit line connection slots upon the back, combined with the traditional screw-terminal connections on the edges from the device. These types of push-fit connections are notorious for dislodging or failing, thus professional electricians practically unanimously avoid all of them in favor of making very tight and secure screw terminal connections.

4. Respect Grounding and Polarization

Grounding plus polarization are vital for the safety regarding modern electrical methods. Grounding provides a safe path for run away electrical current caused by a problem or other issue in a signal. Polarization ensures that electric current travels from the source alongside "hot" wires plus returns to typically the source along fairly neutral wires.

Always stick to manufacturer's wiring blueprints when replacing a fixture, and understand—and use—your home's grounding system to guarantee grounding and polarization remain intact.

There are a selection of ways to analyze for grounding and polarization. A straightforward plug circuit analyzer application, available for a couple of dollars, will make it possible to be able to routinely check shops to be sure they are wired correctly.

5. Box and Clamp It

The Countrywide Electrical Code (NEC) requires that cabling connections be made in an appropriate housing. In most cases, this means any box. Enclosures not only protect the connections—and protect men and women from accidental contact along with those connections—they also provide means for protecting conductors (like electric cables) and products.

The rule here is simple: do not lazy. If an individual need to make a wiring splice, use a junction box and secure the cabling to the package with cable clamps. Never leave the splice or additional connection exposed or even unsecured.
