Failing to take the appropriate precautions or to use the right tools can put you and your family in danger. Common risks include electrocution and possible electrical open fire.

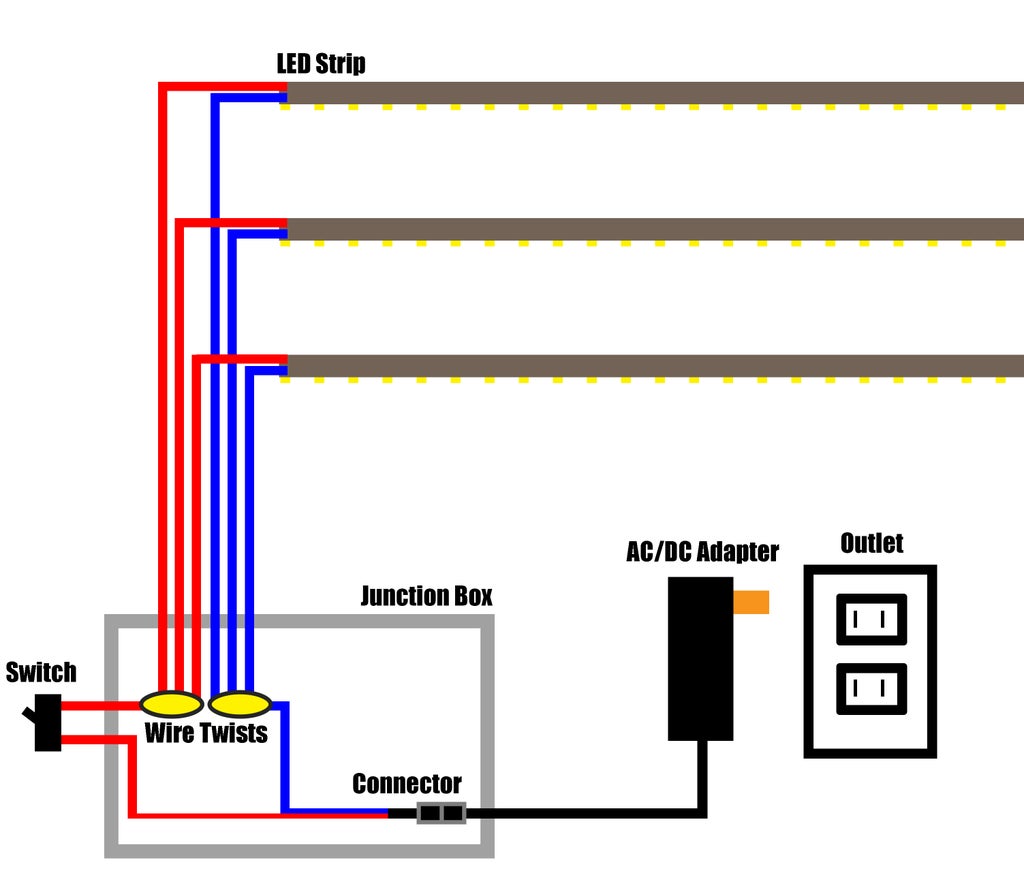

Wiring Under Cabinet Lighting Diagram

Wiring Under Cabinet Lighting Diagram from cdn.instructables.com
Wiring Under Cabinet Lighting Diagram from cdn.instructables.com

Wiring Suggestions

Confident that you really know what you’re doing? Be sure to keep these security tips in mind to avoid hazards during your home wiring project.

1. Strength Off

Make sure the strength is off at the breaker prior to starting and use a voltage tester to verify that cables and/or electrical contacts are completely deceased before you start working on them. Make sure everyone at home is aware that electrical work is going on. Tape the signal breaker into the off position.

2. Be Careful Whatever you Touch

Never touch plumbing or gas pipes while working with electricity they are often used to ground electrical systems.

3. Utilize the Right Tools

Before starting, be sure to have a plan in place as to what outlets, buttons and fixtures will be involved in your project. Make sure you have the ability to the appropriate tools, including but not limited to: needlenose pliers, wire blades, cable & wire stripper, fish & colored tape, volts tester, continuity tester, electric & rightangle drill. You may be in a position to rent some of this equipment from your local hardware store.

4. Choose the Right Parts

In case you are installing new receptacles make certain the new ones match the cabling in your home. A AL-CU seal of approval means it can be used on aluminum and copper mineral wiring. When it is unmarked or there is a slash through the 'S if should only be used on copper wiring.

5. Incorporate a Junction Box

Never splice wires together and hide them within a wall with out a junction box — an accessible junction box should always be used to sign up for wires.

6. Replace Old Wiring That will Shows Indications of Deterioration or Fraying

7. Fix Fuse and Breaker Issues

8. Don’t Overload.

Beyond capacity outlets or expansion cords can create a fire hazard.

In case in doubt, check with reveal reference publication or find a professional to do the work. Even if you think you obtained the project right, one mistake could leave a possible fire hazard stalking in your walls. A reputable electrician understands all areas of home wiring and may even be able to wire your home safely in less time than it takes you to definitely learn.
